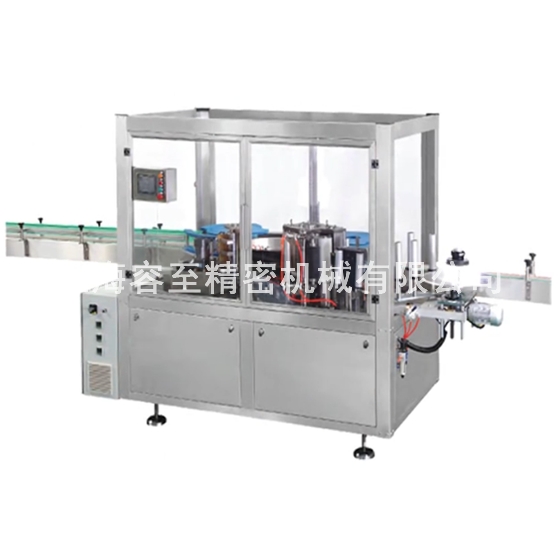

全自动直线式热熔胶贴标机

上海容至精密机械有限公司 专业生产制造圆瓶贴标机, 平面贴标机,全自动贴标机为客户提供优质的产品和服务

适用于形状为圆形,椭圆瓶的塑料瓶,玻璃瓶,金属瓶等自动贴标。







自动化控制采用PLC总体控制将伺服系统,变频系统恒温系统,张力系统,及其他需要控制的点综合控制起(伺服系统采用全进口施耐德伺服系统)做到无瓶不送标,无标不涂胶保证瓶子断续进入机器时,表盘可以平滑的在送标和不送标之间切换,切刀精度正常。
1、主电机,送标电机及涂胶电机采用变频器控制(全进口施耐德品牌)。
2、专门的恒张力检测及反馈控制系统及纠偏导正系统保证了对普通膜料可以达到高的贴标质量。
3、传动系统采用内传动,传动平稳,调机方便。
4、螺旋送瓶机构配备了过载保护系统。
5、螺杆,进瓶拨轮及护瓶板全部用耐磨尼龙材料,对瓶子几乎无磨损。
6、传动系统中的齿轮精度为7级,保证了传动的精确与可靠。
7、人机界面可以显示机器的实际状态,产量,热熔胶温度,涂胶温度等讯息一目了然,方便用户故障排除,操作界面友好。在调试或换标时可以手动启动或点动启动,操作方便。
8、护罩边框全部采用不锈钢材料镶嵌有机玻璃。不锈钢经过拉丝工艺处理,外型美观。

使用电源:AC380V、60HZ、8000W
整机功率:13.5KW
贴标速度:8000-24000瓶每小时
瓶子直径:¢40-100mm圆形容器
标签最大高度:120mm
标签纸芯尺寸:内径¢152.4mm、外径¢600mm
胶体类:热熔胶,在标签两头施胶
溶胶温度:120-160℃
被贴物类型:形状为圆形、椭圆瓶的塑料瓶、玻璃瓶、金属瓶等
标签类型:OPP膜、珠光膜、纸塑复合膜、纸标
气源要求:3-5Kg、30L/min
整机尺寸:L3730×W1314×H1800mm
整机重量:约2200kg
